Engineered to handle high-impact, wide-aisle counterbalance forklift operations with maximum load safety and space utilization.
As Africa’s largest economy, Nigeria is experiencing a fundamental structural evolution in warehousing, supply chain management, and industrial logistics. Driven by major infrastructure developments such as the Lekki Deep Sea Port, the expansion of the Dangote Refinery Industrial Ecosystem, and the growth of light manufacturing hubs along the Lagos-Ibadan Expressway and Ogun State (Agbara, Sagamu, Ifo), modern logistics operators are upgrading from low-efficiency floor-stacking to high-density structural pallet racking.
However, the operational reality of West African logistics dictates specific hardware requirements. Unlike European or North American distribution centers that rely strictly on narrow-aisle reach trucks or VNA (Very Narrow Aisle) equipment operating on ultra-flat floors, over 82% of Nigerian industrial facilities rely primarily on diesel, LPG, and heavy electric counterbalance forklifts. These machines (ranging from 2.5-ton to 5.0-ton capacities with pneumatic or solid rubber tires) are favored for their durability across semi-paved yards, variable concrete floor slabs, and unconditioned warehouse spaces.
With the African Continental Free Trade Area (AfCFTA) gaining momentum, Nigerian logistics providers in Lagos and Port Harcourt are scaling vertical storage to process bulk regional imports and exports seamlessly.
Counterbalance forklifts require wider Right-Angle Stacking Aisles (AST) of 3.8 to 4.5 meters. Standard lightweight roll-formed racking frequently buckles under collision. Chinese heavy structural racking (SK3000) provides the necessary structural resilience.
Coastal logistics zones like Apapa, Lekki, and Port Harcourt present severe relative humidity (up to 85-90%) and salt-laden marine environments, demanding high-micron electrostatically applied thermo-cured powder coating.
An authoritative engineering breakdown comparing structural channel steel (SK3000) versus cold-formed tubular racking (SK2000) for heavy industrial duty in West Africa.
When engineering pallet racking specifically for counterbalance forklifts, Chinese structural design team focuses on two major parameters: Right-Angle Stacking Aisle (AST) clearance and lower-column impact mitigation. Counterbalance forklifts carry their load in front of the front axle without outriggers, resulting in a larger turning radius compared to reach trucks.
A standard 3.0-ton diesel counterbalance truck handling a 1200mm x 1000mm pallet requires a minimum AST of 4,100mm to 4,350mm. Operating within these parameters means lower upright columns are subjected to frequent accidental impacts during turning maneuvers. To counter this operational hazard, our manufacturing plant incorporates heavy-gauge wrapped column protectors, structural channel outer upright legs, and heavy-duty floor-anchored bull-nose guards welded directly into the baseplates.
For high-turnover Nigerian industrial sites (e.g., breweries, cement packaging, flour milling, chemical processing), selecting the correct steel profile is critical to calculating Total Cost of Ownership (TCO). Below is an engineering comparison compiled by our Senior Structural Engineering Division:
| Engineering Attribute | Cold-Formed Open Section Racking | SK2000 Boltless Tubular Racking | SK3000 Hot-Rolled Structural Racking |
|---|---|---|---|
| Steel Composition | Lightweight Q235 cold-rolled coil | Closed structural steel tubing | Hot-rolled C-channel steel (Q235B / Q355B) |
| Forklift Impact Resistance | Low (prone to twist & column buckling) | High (closed tube resists torsional twisting) | Exceptional (thick structural flanges absorb heavy impacts) |
| Beam-to-Column Connection | Standard teardrop / hook connectors | Heavy-duty 4-hook boltless connector | Grade 8.8 structural bolts & welded gusset plates |
| Suitability for Nigerian Conditions | Light-duty retail packaging | High-traffic distribution & FMCG hubs | Cold storage, heavy industry, outdoor/rough slab sites |
| Lifespan Under Heavy Usage | 3 – 5 Years | 10 – 15 Years | 20+ Years |
Industrial ground slabs in alluvial coastal areas like Lagos (Victoria Island, Lekki, Badagry) or riverine zones in Port Harcourt often suffer from soil settlement issues. Installing high-bay storage racks on slabs with compressive strengths below 25 MPa requires enlarged structural footplates (min. 6mm to 10mm thickness) to distribute point loads safely across the concrete base.
Furthermore, our China manufacturing facility utilizes a 9-stage pre-treatment wash (including zinc phosphate dipping) followed by an electrostatic powder coating of 70 to 90 microns. This process ensures exceptional resistance against atmospheric humidity, chemical washdowns, and salt mist corrosion, maintaining frame integrity over decades of service in West Africa.
Proven storage configurations engineered for specific logistics hubs, manufacturing sectors, and regional distribution nodes across Nigeria.
Sector: FMCG, Retail Distribution & Port Logistics
Operational Challenge: Skyrocketing real estate costs per square meter in Lagos require maximizing vertical clear height (up to 10-12 meters) while maintaining rapid SKU selection for high-velocity turnover.

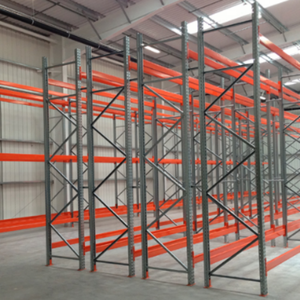

Engineered Solution: Heavy-Duty SK2000 Selective Pallet Racking combined with Double-Deep configurations. Outfitted with heavy structural column protectors to handle 3-ton electric counterbalance trucks working double shifts.
Sector: Grain Storage, Agro-Processing & Fertilizer Distribution
Operational Challenge: Storing heavy, dense seasonal agricultural products (rice bags, sesame, cocoa, fertilizer sacks) on standardized wooden pallets without crushing lower tiers.

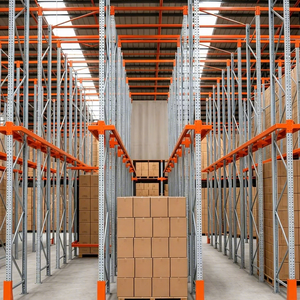

Engineered Solution: Heavy Structural Drive-In Racking Systems (SK3000). Allows counterbalance forklifts to drive directly into storage bays 6 to 8 pallets deep, achieving 80% higher density than standard floor stacking.
Sector: Oil & Gas Spare Parts, Heavy Equipment & Marine Engineering
Operational Challenge: Irregularly shaped, extremely heavy machinery parts, steel pipes, and valves that cannot be safely stored on conventional pallet shelves.
Engineered Solution: Heavy Structural Cantilever Racking fabricated from hot-rolled I-beams, alongside Heavy-Duty Sigma Beam Mezzanine Platforms to create multi-tier office and small-parts picking floors above ground storage.
Sector: Beverage Plants, Plastics & Chemical Manufacturing
Operational Challenge: Managing high-volume production output with zero tolerance for forklift damage to racking uprights during 24/7 continuous factory operations.
Engineered Solution: Automated Radio Pallet Shuttle Racking Systems paired with heavy structural load-row connected framing. Counterbalance trucks stage pallets at the rack face while electric shuttles perform deep-lane placement.
Combining world-class steel fabrication technology in China with dedicated export logistics support for West African trade compliance.
All our engineered systems reference international specifications including ANSI MH16.1 (RMI), EN 15512, and AS 4084. Every batch is certified for load capacity, structural stability, and steel grade compliance.
Operating tens of thousands of square meters of automated roll-forming lines, robotic welding bays, and laser-cutting centers in China. Eliminating middleman markups to provide direct B2B export pricing to Nigerian importers.
Components are precision-bundled, color-coded, labeled by bay number, and steel-strapped for 40ft High Cube container shipping. Protects against transit moisture and simplifies on-site assembly sorting in Nigerian warehouses.
Every exported project includes detailed CAD floor layouts, structural elevation drawings, installation instruction manuals, component piece counts, and certified load capacity safety plaques for facility display.
Clear answers addressing SONCAP, Form M, LC terms, container shipping, and on-site engineering installation in Nigeria.
We work directly with accredited international inspection agencies (such as SGS, Intertek, or Cotecna) to conduct Product Certification (PC) and issue the final Certificate of Conformity (CoC) required by the Nigerian Customs Service. We ensure all steel raw material test certificates and physical inspections comply fully with SONCAP import standards prior to container sealing in China.
We understand the foreign exchange realities and Central Bank of Nigeria (CBN) trade guidelines. We accept confirmed, irrevocable Letters of Credit (L/C at sight) from reputable tier-1 Nigerian financial institutions, as well as standard Telegraphic Transfer (T/T) terms (e.g., 30% deposit against Form M registration, 70% balance prior to original Bill of Lading release).
Yes. For counterbalance forklift operations, we strongly recommend our SK3000 structural channel steel racking or SK2000 closed tubular frame systems. Unlike thin, open roll-formed racking, our structural steel uprights possess significantly higher torsional stiffness and yield strength. Additionally, we integrate heavy-duty floor-mounted steel bull-nose guards and structural column wraps to absorb impact energy away from the primary vertical columns.
Production lead time at our China factory typically takes 15 to 25 days depending on project order volume. Ocean freight transit from major Chinese loading ports (Qingdao, Ningbo, Shanghai) to Nigerian ports (Apapa, Tin Can Island, Lekki Deep Sea Port in Lagos, or Onne Port in Port Harcourt) generally ranges from 30 to 45 days. We work closely with major shipping lines (COSCO, Maersk, MSC) to secure competitive freight rates and free demurrage days.
Yes. Every shipment includes step-by-step 3D assembly manuals and detailed CAD elevation drawings. For large-scale projects, we offer two installation support options: (1) Dispatching certified Chinese structural installation engineers to supervise local Nigerian assembly crews on-site, or (2) Providing comprehensive real-time video engineering supervision and remote technical assistance throughout the project build.
To accurately calculate aisle width, we require your forklift model specifications—specifically the overall length (without forks), turning radius, load center distance, and pallet dimensions (e.g., 1200x1000mm). As a baseline engineering rule, 3-wheel electric counterbalance trucks require 3.4m to 3.8m aisles, while 4-wheel diesel/LPG counterbalance trucks require 4.1m to 4.5m aisles. Send your floor plan and forklift spec sheet to our technical team for a complimentary CAD optimization review.
Consult with our Senior Structural Racking Engineers today. Receive complimentary CAD layout drawings, structural load calculations, and competitive direct factory export quotes tailored for your warehouse facility.
