Iraq Market High-Density Storage Solutions
Engineered for high-bay stability, extreme temperature tolerance, and maximum cubic space utilization.
High Density 5 Layer Steel Double Deep Pallet Racking
Engineered for heavy-load industrial storage in high-bay distribution centers with max structural rigidity.
Send an Inquiry
High Efficiency Heavy Duty Selective Space Saving System
Adjustable beam system delivering 100% direct access to every pallet position for high-velocity operations.
Send an Inquiry
Heavy Duty Warehouse Pallet Racking Units
Cold-rolled steel construction with high impact resistance, tailored for Iraqi regional logistics hubs.
Send an Inquiry
3000kg Capacity Heavy Duty Stacking Pallet Rack
Extra-strength box beams designed for concentrated loads, oil field equipment, and industrial spares.
Send an Inquiry
High-Bay Heavy Load Grid Plastic Pallet Integration
HDPE 1200x1000 plastic pallet solutions specifically reinforced for safe high-bay VNA racking engagement.
Send an Inquiry
High Density Four-Way Shuttle Automated ASRS Rack
Fully automated deep-lane storage system maximizing warehouse throughput and cubic space efficiency.
Send an Inquiry

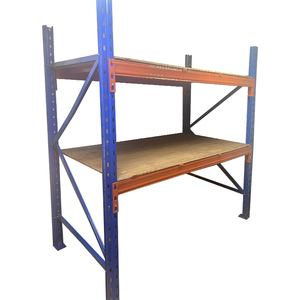

Anti-Corrosion Heavy-Duty Adjustable Pallet Rack
Hot-dip galvanized & epoxy powder-coated surfaces designed to withstand high humidity and saline airborne dust.
Send an Inquiry
Gravity Carton & Pallet Flow Roller Racking System
First-In, First-Out (FIFO) dynamic storage lines ideal for pharmaceutical and food distribution centers.
Send an Inquiry
45%
Floor Space Recovered
16m
Max Vertical Storage Height
100%
Direct SKU Selectivity
50°C+
Thermal Degradation Resistance
1. Executive White Paper: Modernizing Iraq’s Logistics Infrastructure with Very Narrow Aisle (VNA) Systems
As the Republic of Iraq undergoes an unprecedented industrial renaissance—driven by major national infrastructure projects, private sector logistics expansion, and foreign direct investment in key commercial nodes such as Baghdad, Basra, Erbil, Sulaymaniyah, and the Port of Umm Qasr—industrial real estate values have surged significantly. Commercial developers and supply chain operators face a critical dilemma: land acquisition costs in established economic zones have escalated, making horizontal expansion cost-prohibitive, while demand for inventory throughput continues to hit record highs.
In response to these macroeconomic dynamics, modern logistics enterprises across Iraq are transitioning from conventional selective pallet racking (which requires wide operating aisles of 3.5 to 4.2 meters) to advanced Very Narrow Aisle (VNA) Pallet Racking Systems. By engineering working aisles down to just 1.5 to 1.8 meters, VNA racking enables facility managers to convert up to 45% of previously wasted aisle space into revenue-generating pallet positions while retaining 100% direct access to every single stock-keeping unit (SKU).
Engineering Gain for Iraqi Importers & Facility Operators: Implementing VNA racking systems increases vertical space utilization by up to 85% compared to standard layouts, utilizing building heights up to 16 meters. For temperature-controlled cold storage facilities in Southern Iraq, this compression delivers a 30% reduction in cooling energy costs per pallet position.
FlexBeam Warehouse Equipment Co., Ltd. serves as a premier manufacturer, direct factory supplier, and global exporter specializing in heavy-duty VNA structural systems designed specifically for Iraq’s challenging climatic and operational environments. From dust-proof powder coatings to high-yield Q355B structural steel engineered for seismic compliance, our systems provide the foundation for Iraq’s next-generation distribution centers.
2. Technical Architecture & Engineering Specifications of VNA Racking
Designing a reliable Narrow Aisle Pallet Racking System for high-bay applications demands strict adherence to international structural engineering standards, including ANSI MH16.1 (RMI), EN 15512, and FEM 10.2.02. Because VNA systems often reach vertical heights between 10 to 16 meters, structural tolerances must be significantly tighter than standard racking to prevent deflection, frame sway, and truck mast collisions.
2.1 Upright Profile Selection: SK2000 Closed Tubular vs. SK3000 Structural C-Channel
FlexBeam provides two specialized upright column profile engineering platforms optimized for distinct operational demands within Iraqi facilities:
SK2000® Boltless Closed Tubular Rack
Featuring a 100% closed structural tube profile, SK2000 delivers 250% greater torsional rigidity and 44% higher front-to-back impact resistance than open roll-formed columns. Ideal for high-bay VNA aisles where narrow margins increase forklift impact risks.
SK3000® Hot-Rolled Structural Channel
Fabricated from heavy gauge hot-rolled structural steel C-channels bolted to bracing members. Engineered for extreme duty cycles, heavy oil & gas spares in Basra, freezer warehouse environments (-30°C), and loads exceeding 3,500kg per beam level.
Hybrid Safety & Impact Guarding
Integrated column cores, heavy-duty floor-mounted bullnose guards, and continuous structural aisle guide rails protect structural uprights against repeating mechanical stresses caused by high-speed VNA specialized turret trucks.
2.2 Guidance Systems: Mechanical Rail vs. Inductive Wire Guidance
To safely navigate turret trucks (man-up or man-down VNA specialized forklifts) through 1,600mm wide aisles at speeds up to 12 km/h, precise truck guidance is mandatory. FlexBeam supplies engineered guidance interfaces tailored to project budgets and building specifications:
- Mechanical Guide Rail Systems: Heavy structural angle iron (e.g., L100x75x10mm or structural C-channel) anchored to the concrete floor slab with chemical expansion anchors every 500mm. The guide rail controls lateral movement of the truck's guide rollers, providing physical protection against rack column impact.
- Inductive Wire Guidance Systems: An electrified wire embedded into a 15mm deep saw-cut groove along the center of the aisle floor, emitting a high-frequency signal tracked by the turret truck’s steering sensor. Wire guidance eliminates ground obstruction, facilitating easier floor cleaning and low-level order picking access.
2.3 Technical Engineering Specification Matrix
| Engineering Feature |
Conventional Selective Racking |
FlexBeam High-Bay VNA Racking |
Automated Shuttle / ASRS Rack |
| Working Aisle Width |
3.5m – 4.2m |
1.5m – 1.8m |
1.0m – 1.4m |
| Maximum Vertical Height |
Up to 8.0 meters |
Up to 16.0 meters |
Up to 40.0 meters |
| Floor Space Utilization |
40% – 45% of footprint |
75% – 85% of footprint |
85% – 95% of footprint |
| Pallet Access Rate |
100% Direct Selectivity |
100% Direct Selectivity |
LIFO / FIFO Automated Batch |
| Floor Slab Flatness Req. |
Standard (Class 300) |
Superflat (DIN 15185 / EN 15620) |
Ultraflat Precision Engineering |
| CapEx Return on Investment |
Baseline Benchmark |
12 to 18 Months Payback |
36 to 48 Months Payback |
3. Localized Application Scenarios Across Iraqi Commercial & Industrial Hubs
Operating warehouse storage infrastructure in Iraq presents localized environmental and operational challenges—including extreme summer ambient temperatures exceeding +50°C, airborne sand/dust particles, fluctuations in power grid reliability, and varying concrete slab quality in legacy buildings. FlexBeam tailors its structural designs to address these local requirements directly.
Basra & Southern Oilfield Supply Bases
Environment: Saline coastal atmospheric corrosion, heavy dust accumulation, and extreme thermal cycling.
FlexBeam Solution: Hot-dip galvanizing conforming to ISO 1461 and thick epoxy powder coatings (80–120 microns) preventing corrosion on beam connectors and footplates. Structural SK3000 channels handle heavy valve components, drill bits, and steel pipe bundles up to 3,500kg per level.
Baghdad Central FMCG & Retail Distribution
Environment: High SKU complexity, rapid order fulfillment velocity, and high urban land prices.
FlexBeam Solution: High-bay VNA racking combined with lower-tier carton pick modules and wire mesh decking. Enables high-speed pallet storage on upper beam levels while dedicated piece-picking occurs on ground tiers under protected overhead canopies.
Erbil & Kurdistan Region Pharmaceutical Cold Storage
Environment: Strictly regulated GDP cold chain standards (-25°C to +4°C) with high refrigeration power costs.
FlexBeam Solution: Compacted VNA footprint minimizes cold room volume requirement, reducing HVAC electrical loads by up to 30%. Structural steel connections resist low-temperature embrittlement, ensuring safety in freezer conditions.
4. Industrial Growth Trends & Economic Drivers in the Iraq Market (2025–2030)
The demand for advanced narrow aisle storage hardware in Iraq is accelerated by several structural shifts in the national economy:
- Post-Reconstruction Industrial Zone Development: Government initiatives establishing modern industrial parks near Al-Faw Grand Port, Basra Logistics City, and Baghdad International Airport free zones are driving demand for international storage standards (EN/RMI).
- Formalization of Modern Trade & E-Commerce: The rapid expansion of organized retail chains and digital delivery platforms in major urban centers requires automated and semi-automated logistics infrastructure capable of handling thousands of daily picking transactions.
- Focus on Warehouse ROI & Asset Protection: Iraqi commercial warehouse owners are moving away from uncertified, locally welded scrap metal racking toward certified, factory-engineered structural systems that offer guaranteed load capacities, seismic safety compliance, and multi-decade service life.
Economic Calculation – Land vs. Racking Investment in Baghdad Real Estate:
Constructing a new 5,000 sq.m warehouse in prime industrial districts around Baghdad costs approximately $350–$500 per sq.m for land purchase and civil works. By retrofitting an existing building with a 14-meter FlexBeam VNA system instead of expanding horizontally, an operator can add 4,000 extra pallet positions at less than 35% of the capital expenditure required for new construction.
5. Why Leading Iraqi Logistics Operators Partner with FlexBeam
FlexBeam Warehouse Equipment Co., Ltd. is not merely a trading company; we are an end-to-end engineering powerhouse, equipment manufacturer, and global exporter dedicated to delivering tailored warehouse storage infrastructure.
5.1 Advanced Manufacturing & Quality Control
Our manufacturing facility spans automated roll-forming lines, robotic continuous welding systems, and an advanced automated powder coating line. Every upright frame, beam, and connector bracket undergoes rigorous mechanical testing, including tensile strength verification of raw Q235B/Q355B steel coils and weld integrity testing.
5.2 End-to-End Export & Logistics Handling to Iraq
Exporting structural steel equipment to Iraq requires precise documentation and packaging protocols to avoid customs delays at entry ports such as Umm Qasr Port or land border crossings via Mersin/Turkey and Ibrahim Khalil:
- Container Loading Optimization: Uprights and beams are bundled with steel strapping, heavy plastic wrapping, and corner protectors to eliminate transit chafing during maritime shipment.
- Complete Customs & Engineering Documentation: Every shipment includes detailed packing lists sorted by component tags, mill test certificates (MTC), certified load capacity plaques, and step-by-step CAD assembly drawings.
- Certificate of Conformity (CoC) Readiness: Our manufacturing standards comply with BV (Bureau Veritas), SGS, and TÜV inspection requirements mandated for Iraqi customs clearance.
6. Frequently Asked Questions (FAQ) for Iraq Racking Procurement
Q:
How do ambient summer temperatures of +50°C in Iraq affect VNA rack structural capacity?
Structural steel retains its yield and tensile strength within ambient temperature ranges up to +100°C, meaning ambient Iraqi heat does not compromise steel capacity. However, extreme heat can degrade lower-quality organic paints. FlexBeam utilizes thermosetting epoxy-polyester powder coatings cured at 200°C, providing complete resistance to UV degradation, thermal cracking, and surface chalking.
Q:
What floor slab tolerance is required to install a 12m to 15m VNA racking system in Iraq?
For VNA rack heights exceeding 10 meters, floor slab flatness must comply with DIN 15185 or EN 15620 (Class Superflat / Category Fmin 100). Small floor variations at ground level translate to significant mast tilting at 14 meters height. We provide detailed slab tolerance specification sheets to your civil contractor prior to pouring concrete, or recommend self-leveling topping compounds for retrofitting existing Iraqi facilities.
Q:
Can FlexBeam supply customized guide rail systems matching our existing turret trucks?
Yes. We custom-engineer mechanical aisle guide rails (standard 100x75x10mm angle profile or custom structural C-channels) based on the exact wheel geometry, ground clearance, and manufacturer specifications of your VNA turret trucks (e.g., Linde, Jungheinrich, Still, Crown, Toyota/BT).
Q:
What is the typical shipping lead time from your factory to Umm Qasr Port or Erbil?
Manufacturing lead time typically ranges from 15 to 25 days depending on project volume. Direct ocean freight from our factory port to Umm Qasr Port, Iraq takes approximately 22 to 28 days. For northern regions (Erbil/Sulaymaniyah), transit via Mersin port with overland trucking takes around 25 to 30 days total.
Q:
How do you handle installation support on-site in Iraq?
Every project is supplied with comprehensive 3D installation manuals, component identification tags, and anchor torque specifications. Additionally, FlexBeam can dispatch experienced installation supervisory engineers to direct your local Iraqi riggers and ensure compliant assembly.
Transform Your Iraqi Warehouse Capacity Today
Send us your warehouse floor plan, clear building height, and pallet specifications. Our senior structural logistics engineers will design a customized VNA layout and provide a complete factory-direct price quotation within 24 hours.
