Explore our export-grade, structural steel racking portfolio engineered for maximum cube utilization, structural longevity, and seamless forklift integration.
In modern industrial logistics, vertical storage density and swift selective accessibility represent two critical vectors of warehouse profitability. Very Narrow Aisle (VNA) Pallet Racking Systems represent the pinnacle of high-density selective storage architecture. By compressing traditional working aisles—which typically span between 3.2 to 3.8 meters in standard selective setups—down to a precise 1.5 to 1.8 meters, VNA racking engineering recovers up to 45% to 90% of unutilized horizontal floor space without sacrificing direct 100% pallet accessibility.
As a leading China VNA forklift pallet racking factory and supplier, our engineering design centers on specialized steel section profiles, high-precision guide rails (or inductive wire-guidance sub-systems), and structural stiffness matrices calculated to withstand dynamic mast oscillations of articulated VNA turret trucks operating at lift heights exceeding 16 to 18 meters.
Key Structural Imperative: VNA racking systems require rigorous horizontal beam stiffness and tight manufacturing tolerances (EN 15620 / FEM 10.2.02). Deflection limits must be engineered to span ratios tighter than L/200 under full design payload to eliminate mast collision risk at extreme vertical elevations.

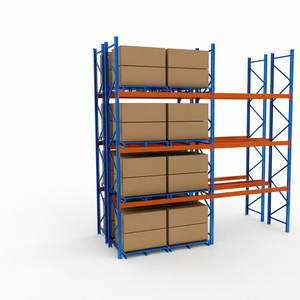

Our VNA systems incorporate hot-rolled structural steel channel uprights (SK3000 series) and high-tensile closed-section tubular uprights (SK2000 boltless technology). Unlike open roll-formed C-channels, closed tubular sections possess superior torsional rigidity, delivering up to 200% greater resistance to side-impact loads inflicted by fast-moving turret trucks within restricted guide rail channels.
Cold-drawn angle iron or heavy steel floor channels securely anchored via structural wedge bolts guarantee millimetric alignment along the entire aisle run.
Structural channel steel with reinforced heavy-duty column cores protects critical aisle-entry frames against high-velocity forklift collisions.
Heavy-duty spliced drop-over steel deck panels provide rigid bottom support, accommodating non-standard pallets and preventing hazardous load fall-through.
When engineering enterprise logistics hubs, specifying the optimal warehouse racking matrix requires balancing volumetric density against pallet throughput requirements. Below is an engineering comparison produced by our structural design team:
| Racking Architecture | Aisle Width (mm) | Storage Density Ratio | Direct Selectivity | Forklift Compatibility | Optimal Application |
|---|---|---|---|---|---|
| Very Narrow Aisle (VNA) | 1,500 – 1,800 mm | 90% – 95% High | 100% (Direct Access) | VNA Turret Truck / Man-Up Combi | High SKU count, high land cost, tall facilities |
| Standard Selective Rack | 3,200 – 3,800 mm | 50% – 60% Moderate | 100% (Direct Access) | Standard Counterbalance / Reach Truck | General distribution, fast turnover, low height |
| Double Deep Racking | 3,000 – 3,400 mm | 70% – 75% High | 50% (LIFO Access) | Deep-Reach Pantograph Forklift | Multiple pallets per SKU, batch manufacturing |
| Pallet Flow Gravity Rack | 3,200 – 3,600 mm | 85% – 90% Ultra-High | FIFO (First-In, First-Out) | Standard Counterbalance Truck | Perishable food, cold storage, fast-moving consumer goods |
| Drive-In / Drive-Through | N/A (Internal Bays) | 80% – 85% High | LIFO / FIFO Bulk | Standard Reach Truck | Low SKU count, seasonal stock, cold storage freezers |
The global industrial storage manufacturing landscape is undergoing a structural paradigm shift driven by land scarcity, automated material handling, and stringent seismic compliance standards. Enterprise buyers sourcing from China must evaluate suppliers not merely on raw steel pricing, but on forward-compatible engineering integrations.
As logistics facilities transition from manual labor to automated guided vehicles (AGVs) and autonomous mobile robots (AMRs), racking fabrication tolerances have migrated from millimeter to sub-millimeter precision. VNA systems designed today must incorporate retrofittable reflective optical markers, inductive floor wire pathways, and laser-aligned guide tracks to facilitate 24/7 autonomous turret truck operation.
With global demand surging for pharmaceutical and cold-chain food distribution, steel rack structural performance under low-temperature embrittlement (-30°C deep freeze) is vital. Advanced Chinese manufacturing utilizes micro-alloyed cold-rolled steel (containing structural niobium and vanadium additives) coated with low-VOC, anti-corrosive electrostatic powder thermosetting resins to ensure crack propagation resistance under thermal cycling.
Modern global logistics developments require compliance with stringent localized building codes (e.g., AS 4084-2012 in Australia, ANSI MH16.1 in North America, and FEM specs across Europe). Top China suppliers employ 3D Finite Element Analysis (FEA) dynamic load simulation to calculate frame buckling moments, second-order $P-\Delta$ effects, and baseplate anchor shear stresses under extreme seismic accelerations.
FlexBeam Warehouse Equipment Co., Ltd. operates state-of-the-art continuous roll-forming lines, automated robotic welding cells, and eco-friendly powder coating facilities. We specialize in engineering heavy-duty boltless tubular and structural channel racking systems built for intense operational environments.
Every system is designed in accordance with ANSI MH16.1 (RMI), EN 15512, and AS 4084 specifications, accompanied by certified load capacity plaques for local compliance.
Our SK2000 series utilizes closed tubular cold-formed upright profiles offering significantly superior torsional strength over traditional open roll-formed C-channels.
From initial CAD layout drafting and slab point-load analysis to turnkey export container packing, our engineers provide complete project lifecycle management.
We source prime structural steel coils with minimum yield strengths exceeding 355 MPa, ensuring exceptional safety factors under full design load ratings.
Key technical answers compiled by our structural engineers to assist facility managers, logistics consultants, and global B2B procurement teams.
Work directly with China’s premier VNA pallet racking engineering team. Send us your building architectural floor plan or pallet load specifications for a zero-cost layout optimization design and commercial quotation.
