Explore heavy-duty pallet racking engineered for precision turret trucks, automated shuttle storage, and ultra-dense space utilization.
As global industrial land prices escalate and order fulfillment cycles compress, logistics decision-makers are pivoting away from footprint expansion toward vertical cubic optimization. Very Narrow Aisle (VNA) racking systems represent the pinnacle of selective high-density pallet storage engineering. By compressing working aisles from standard widths of 3.5–4.0 meters down to 1.5–1.8 meters, VNA configurations unlock up to 90% additional storage capacity within existing facility envelopes while preserving 100% direct pallet accessibility.
However, selecting a global VNA racking exporter involves far more than comparing per-ton steel pricing. A VNA structural framework operates under strict mechanical tolerances. Because Articulated Forklifts or Very Narrow Aisle Turret Trucks operate with clearances as small as 100mm on either side, vertical deflection, sway resistance, floor-flatness interaction, and structural integrity must be engineered to near-zero margin for error.
Information Gain Metric: Standard selective rack engineering permits a maximum beam deflection of L/200 under static load. In high-bay VNA applications exceeding 12 meters in height, premium exporters design against enhanced structural criteria (such as L/300 or L/400) to prevent sway amplification during high-reach maneuvers.
This benchmark report reviews the top criteria that define elite VNA racking exporters, evaluates macro procurement trends for 2026–2030, and breaks down the structural differences between open roll-formed C-channels, closed tubular uprights, and heavy structural hot-rolled profiles.
Distinguishing world-class manufacturing from basic roll-forming operations.
Utilizing high-tensile cold-rolled steel grades (Q355B/Q460 or structural steel equivalent to ASTM A1011) ensuring exceptional strength-to-weight ratios under dynamic loading.
Engineering seamless structural integration for both mechanical angle-iron guide rails and inductive wire-guidance floor loops for turret truck navigation.
Finite Element Analysis (FEA) testing guarantees horizontal sway stability under full capacity, preventing boom interference during high-bay pallet placement.
The global warehousing landscape is experiencing rapid modernization. Industrial procurement teams are no longer purchasing static shelving; they are procuring integrated structural components designed to function within smart supply chain ecosystems. Key procurement vectors include:
Modern VNA warehouses are increasingly transitioning from driver-operated turret trucks to fully automated VNA AGVs and Autonomous Mobile Robots (AMRs). This technological shift demands tighter manufacturing tolerances from racking exporters. Column plumbness, beam connector rigidity, and rack frame squareness must adhere to precise millimeter-level standards to ensure automated sensors can execute error-free pallet deposits at elevations above 15 meters.
Experienced global buyers recognize that VNA performance is directly linked to floor slab flatness. Leading VNA exporters now offer holistic pre-engineering consultation, aligning rack column baseplate dimensions, anchor bolt shear ratings, and shimming systems with superflat floor categories (Class F_min 50 or VDMA Specification Class A). This prevents uneven point-loading stresses from compromising structural stability.
The boundary between pure selective VNA racking and high-density shuttle storage is blurring. Forward-thinking exporters are designing hybrid systems where VNA aisles serve as high-speed transport arteries for automated shuttle cars, combining the dense storage ratios of LIFO/FIFO shuttle channels with the rapid access speeds of narrow-aisle equipment.
A comparative analysis evaluating spatial, operational, and structural metrics across standard warehouse racking configurations.
| Racking System Type | Aisle Width (mm) | Storage Density Ratio | SKU Selectivity | Forklift / Equipment Type | Optimal Height Range |
|---|---|---|---|---|---|
| Very Narrow Aisle (VNA) | 1,500 – 1,800 | 85% – 90% | 100% (Direct) | VNA Turret Truck / Wire-Guided AGV | Up to 18 Meters |
| Standard Selective Rack | 3,300 – 3,800 | 40% – 50% | 100% (Direct) | Standard Counterbalance / Reach Truck | Up to 10 Meters |
| Double-Deep Pallet Rack | 3,000 – 3,400 | 60% – 65% | 50% (Filtered LIFO) | Deep-Reach Pantograph Truck | Up to 12 Meters |
| Drive-In / Drive-Through | N/A (Lanes) | 75% – 85% | Low (Bulk LIFO/FIFO) | Standard Forklift (Internal Drive) | Up to 10 Meters |
| Radio Shuttle System | 3,000 – 3,200 | 85% – 95% | High density per lane | Forklift + Automated Radio Shuttle | Up to 22 Meters (ASRS) |
When sourcing heavy-duty narrow aisle systems for international projects, procurement officers must conduct thorough technical audits of prospective suppliers. Below are the 10 structural and organizational benchmarks required for qualification:

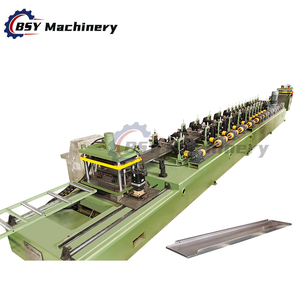

At FlexBeam Warehouse Equipment Co., Ltd., we bring decades of specialized engineering experience to global warehouse infrastructure projects. Our manufacturing lines combine advanced PLC-controlled cold roll-forming technology with rigorous structural validation processes.
Whether your application requires our proprietary boltless tubular SK2000 structural rack series for extreme impact resilience, or heavy-duty hot-rolled SK3000 channels engineered for severe temperature cold storage, FlexBeam systems deliver predictable, long-term ROI.
Every racking layout is tailored to your specific pallet dimensions, stack heights, clear warehouse ceiling heights, and local building codes.
Streamlined logistics management supplying certified racking systems to logistics hubs across North America, Europe, Australia, and Southeast Asia.
Integrated column cores, reinforced floor anchors, and impact-absorbing steel alloys dramatically lower long-term maintenance costs.
Direct technical answers to common questions raised by warehouse facility managers, supply chain consultants, and industrial buyers.
VNA aisle widths typically range between 1,500mm and 1,800mm, depending strictly on the specific model and clearance requirements of the Very Narrow Aisle turret truck or articulated forklift selected. Standard reach trucks require 2,800mm to 3,200mm, while conventional counterbalance trucks require 3,600mm to 4,000mm.
Mechanical guidance utilizes continuous heavy-duty steel angle iron mounted along the bottom of the rack columns to physically steer the turret truck's guide wheels down the aisle. Wire guidance embeds an inductive sensor wire into a shallow channel cut into the concrete floor slab; the truck's onboard electronics detect the low-frequency signal to steer automatically. Wire guidance leaves the aisle floor flush and clear of mechanical obstacles.
Because VNA turret trucks lift pallets to heights exceeding 10 to 16 meters without outriggers, even a minor 2mm floor irregularity at ground level is magnified exponentially at the mast peak. This can cause severe mast sway, collision with rack uprights, or safety lockouts. Floors must meet stringent superflat standards such as DIN 15185 or VDMA Class A specifications.
FlexBeam products can be custom-engineered to meet ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks by RMI), European Standard EN 15512, and Australian Standard AS 4084, depending on the regulatory mandates of the installation destination.
Components are pre-bundled using high-tensile steel strapping over heavy cardboard corner protectors. Upright frames and beams are mounted onto heavy wooden dunnage shoes designed for fork-truck loading and unloading, ensuring components arrive without surface scratches or structural warping.
Connect directly with FlexBeam’s senior racking engineers. Send us your CAD floor plan, pallet specs, and lift equipment details for a complete, structural-load-certified storage layout recommendation.
