An authoritative technical evaluation of structural steel load distribution, cold-formed vs. hot-rolled profiles, and finite element optimization for high-density warehouse operations.
As leading custom OEM cantilever pallet racking manufacturers and B2B suppliers, FlexBeam Warehouse Equipment Co., Ltd. operates at the intersection of heavy structural metallurgy and precision automation engineering. Modern logistics hubs and manufacturing facilities require racking systems built not merely to hold weight, but to withstand dynamic forklift impacts, seismic accelerations, and high-frequency cyclical load stresses. Our manufacturing frameworks adhere strictly to international structural testing standards, including ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks published by the Rack Manufacturers Institute - RMI), EN 15512:2019 (European standard for steel static storage systems), and AS 4084:2023 (Australian standard for steel storage racking).
The engineering edge of FlexBeam's custom OEM cantilever systems lies in our structural column profiles and load-bearing arm geometry. Cantilever racking is intrinsically designed to store non-standard, long, or awkward materials such as timber, steel pipes, aluminum extrusions, plastic tubing, and heavy metal sheets without front-column obstruction. By utilizing high-tensile hot-rolled structural steel channels (Q235B and Q355B structural grades equivalent to ASTM A36 and ASTM A572 Grade 50), our systems provide linear elastoplastic deformation resistance far exceeding standard cold-rolled light-gauge racks.
“Information Gain Insight: While conventional roll-formed racking suffers structural bucking upon minor forklift shear impact, FlexBeam’s closed-section tubular uprights (SK2000 technology) and heavy-duty structural I-beam columns absorb up to 250% higher torsional impact energy before structural yielding, dramatically reducing total cost of ownership (TCO) and long-term facility repair liability.”
Every custom OEM cantilever and pallet rack configuration undergoes rigorous Finite Element Analysis (FEA) to verify point-load deflection thresholds, ensuring dynamic loads remain within L/180 or L/240 deflection ratios.
Engineered with hot-rolled structural steel I-beams for uprights and arms, enabling individual arm weight capacities ranging from 500 kg to over 5,000 kg per arm with zero column twist.
Custom-anchored base plates, chemical anchor bolts, and specialized zinc-rich hot-dip galvanizing options designed to survive high-intensity seismic zones and freezer environments down to -30°C.
How global supply chain volatility, land cost pressures, and warehouse automation are redefining OEM cantilever and pallet rack procurement strategy.
Strategic B2B buyers and supply chain executives can no longer evaluate industrial racking strictly on a initial-price-per-pallet-position basis. The global procurement landscape for material handling equipment is undergoing structural transformation driven by four distinct macro-level trends:
Use our engineering comparison matrix below to determine the ideal structural architecture based on material type, access requirement, and load dynamics:
| Racking Architecture | Primary Cargo Type | Load Capacity Range | Selectivity Rate | Spatial Efficiency | Key Engineering Feature |
|---|---|---|---|---|---|
| Structural Cantilever Rack | Pipes, Lumber, Extrusions, Sheets | 500kg - 5,000kg / Arm | 100% Direct Access | High (No front columns) | Tapered arm design balances flex & strength |

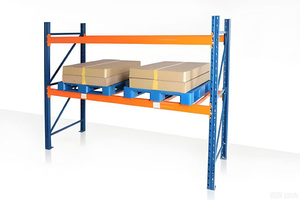

| SK2000 Boltless Tubular Rack | Standard Pallets, Heavy Cartons | 1,000kg - 3,500kg / Level | 100% Selective | Moderate | Closed tubular upright resists forklift shear |
| SK3000 Structural Channel Rack | Heavy Pallets, Die Sets, Freezers | 2,000kg - 5,000kg / Level | 100% Selective | Moderate to High | Hot-rolled structural channel bolted frames |
| Drive-In / Drive-Through Rack | Uniform SKUs, Bulk Pallets | 1,000kg - 2,000kg / Pallet | Low (LIFO / FIFO) | Ultra-High (up to 85%) | Eliminates aisles for maximum cubic utilization |
| Pushback & Pallet Flow Racks | Medium SKUs, Date-Sensitive Stock | 1,500kg / Position | Moderate (LIFO / FIFO) | High (2 to 6 deep) | Gravity roller beds and nested cart systems |
Continuous technical advancements driving load capacity, structural safety, and rapid modular assembly.
Computerized fiber lasers notch upright columns with sub-millimeter precision, enabling smooth hook insertion and eliminating frame twist during dynamic loading.
Patented quick-lock and hairpin arm locks ensure cantilever arms cannot be accidentally dislodged by upward forklift operator errors, preventing catastrophic spills.
Multi-tier cantilever and heavy racking designs integrated directly with heavy-duty structural steel work platforms, doubling available usable square footage.
End-to-end custom engineering, rigorous mill certification compliance, and dedicated export container logistics.
FlexBeam Warehouse Equipment Co., Ltd. is a global original equipment manufacturer (OEM) specializing in high-load structural steel pallet racking, cantilever systems, automated rack infrastructure, and industrial safety barriers. Based on decades of metallurgical and material handling engineering, FlexBeam provides enterprise solutions tailored specifically to importers, system integrators, warehouse developers, and end-user industrial corporations worldwide.
We source prime steel exclusively from top-tier certified steel mills. Every production run is supplied with Mill Test Certificates (MTC) proving chemical composition and yield strength.
From customized arm length, column spacing, and base thickness to unique corporate color powder coating, our CAD/CAM engineers transform layout challenges into turnkey systems.
Components are bundle-wrapped with protective steel strapping, corner protectors, and containerized loading plans to guarantee zero transit damage during international ocean freight.
Critical engineering, installation, and procurement answers for international sourcing officers and logistics engineers.
To accurately engineer a cantilever system, our structural engineers require: (1) Weight, length, depth, and height of the product to be stored; (2) Number of arm storage levels per upright; (3) Total allowable continuous deflection; (4) Forklift lift height and clear building height; and (5) Soil/concrete slab thickness and seismic zone data. A complete CAD layout plan accelerates the engineering timeline.
Boltless tubular racking (such as our flagship SK2000 series) utilizes closed-section hollow structural tubing for uprights. It offers exceptional torsional resistance against forklift impact and enables rapid boltless beam assembly. Structural channel racking (SK3000 series) is constructed from hot-rolled C-channel steel bolted at all joints, making it the ultimate solution for extreme loads, heavy dynamic shock environments, freezer facilities, and drive-in high-density racks.
FlexBeam structural racking systems can be fully engineered and certified according to ANSI MH16.1 (RMI standard for the United States), EN 15512 (European standard), AS 4084 (Australian standard), and relevant local Building Code requirements (such as IBC or Eurocodes).
All export products undergo multi-stage automatic surface pre-treatment (degreasing, phosphating) prior to electrostatic thermosetting epoxy-polyester powder coating. For severe outdoor or cold-storage environments, we offer Hot-Dip Galvanizing (HDG) per ASTM A123, providing decades of rust-free service even in high-humidity coastal zones.
Yes. FlexBeam custom cantilever systems utilize pin-connection or heavy bolt-connection keyways along the structural I-beam column, allowing vertical arm height adjustments at standard 76.2mm (3-inch) or 100mm increments without dismantling the main upright column matrix.
Standard OEM/ODM production lead times range between 15 to 25 days depending on the structural volume and powder coating customization requirements. Complete assembly drawings, component code labeling, and load capacity plaques are included with every export shipment.
