Explore our top-tier heavy-duty storage configurations designed for optimal cube utilization, safety compliance, and maximum ROI.
High Density LIFO
Utilizes nested carts flowing on inclined rails. Maximizes depth up to 6 pallets while offering faster picking times than conventional drive-in systems.
Get Catalog
Heavy-Duty Shelving
Customizable multi-tiered racking engineered with high-tensile steel cold-rolled profiles. Provides excellent structural rigidity for manual and semi-automated order picking.
Get Catalog
Powder Coated Modular
Built with advanced thermosetting epoxy powder coating. Designed for demanding humidity, cold storage, and heavy industrial staging environments.
Get Catalog
Drive-In / Drive-Through
Eliminates operator aisles to boost storage density by up to 75%. Allows forklifts to enter storage lanes directly for high-volume, single-SKU management.
Get Catalog

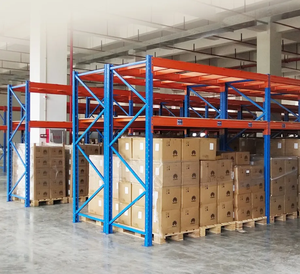

100% Selective Access
The gold standard for standard warehouse operations. Features 75mm / 50mm beam pitch adjustments, structural safety locks, and high load-bearing capacity per level.
Get Catalog
Double Deep Storage
Stores pallets two-deep to reduce aisle requirements by 50%. Engineered for deep-reach forklifts, delivering optimal compromise between selectivity and density.
Get Catalog

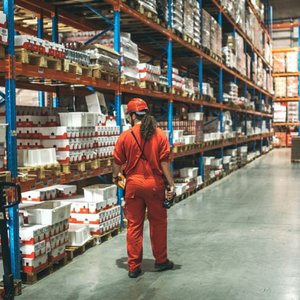

High Bay Structural
Engineered for extreme vertical warehouse expansion. Precision bolted frames using structural Q355B steel channels ensure zero structural deflection under maximum loading.
Get Catalog
Heavy Industrial
Built with heavy-gauge closed tubular posts and reinforced box beams. Ideal for heavy manufacturing, raw material warehousing, and automotive die storage.
Get CatalogAs modern global logistics demands higher floor space yield and reduced operational overhead, Lane Storage Racking Systems—including Drive-In, Push-Back, Pallet Flow, and Radio Shuttle Lane configurations—have evolved from simple steel frameworks into highly calculated mechanical engineering systems. As a leading manufacturer and exporter based in China, our engineering approach combines structural cold-formed steel mechanics with advanced manufacturing precision to deliver superior safety and volumetric efficiency.
Information Gain Insight: Unlike conventional roll-formed open channels that buckle under accidental forklift impacts, our closed-section tubular frames and hot-rolled structural steel channels (Q355B grade) absorb up to 250% more torsional impact energy, significantly lowering long-term warehouse lifecycle repair costs.
The foundation of any high-density lane rack lies in its steel metallurgy and section geometry. We utilize prime certified steel coil from leading metallurgical mills (SSAB, Baosteel, and Shougang). Our structural upright columns are engineered according to stringent finite element analysis (FEA), ensuring structural stability under high static loads, dynamic forklift vibrations, and seismic events.
Every racking project is validated against RMI ANSI MH16.1, FEM 10.2.02, and AS 4084 international racking standards with stamped load capacity documentation.
Beam connectors and structural baseplates feature 100% full-penetration robotic welds, guaranteeing zero structural void gaps and uniform stress distribution.
Pre-treated with a 9-stage phosphate wash followed by electrostatic powder deposition, providing superior salt spray and scratch resistance for cold storage.
Selecting the correct lane racking architecture requires balancing floor space footprint, inventory SKU diversity, rotation strategies (FIFO vs. LIFO), and mechanical handling equipment (MHE) capital expenditure. Below is an engineering comparison matrix designed for warehouse project managers and procurement heads.
| Racking System Type | Space Utilization Yield | Selectivity Ratio | Rotation Principle | Forklift Entry Requirement | Ideal Industry Application |
|---|---|---|---|---|---|
| Drive-In / Drive-Through | Ultra-High (up to 80%) | Low (Single SKU per lane) | LIFO / FIFO | Enters Storage Lanes | Cold Storage, FMCG, Seasonal Stock |
| Push-Back Racking | High (up to 65%) | Medium (2–6 pallets deep) | LIFO | Aisle Only (No Entry) | 3PL Warehouses, Food Distribution |
| Pallet Flow (Gravity Lane) | Ultra-High (up to 85%) | Medium (Dedicated SKU lanes) | FIFO (Strict) | Separate Loading/Unloading | Pharmaceuticals, Perishable Foods |
| Radio Shuttle Lane Rack | Maximum (up to 90%) | High (Automated Lane Switching) | FIFO & LIFO Flexible | Aisle Only (Robotic Shuttle inside) | Automated Logistics Hubs, Chemicals |
| Double Deep Selective | Moderate (up to 60%) | 50% Immediate Access | LIFO | Pantograph Reach Truck | General Industrial Manufacturing |
Procurement directors purchasing industrial racking from Chinese exporters are no longer focusing solely on FOB steel prices per metric ton. Modern enterprise buyers prioritize holistic metrics including Total Cost of Ownership (TCO), carbon footprint transparency, and modular scalability.
Static lane racking is rapidly evolving into dynamic, shuttle-ready structures. Procurement strategies now mandate that lane drive rails be manufactured with ultra-precise tolerances (within ±1.0mm per 10-meter span) to accommodate high-speed robotic shuttles. Future-ready systems integrate optical sensor reflectors, magnetic guide tracks, and wireless charging docks directly into the steel upright channels.
To combat high forklift collision frequency at lane entrances without over-engineering the entire layout, global buyers are specifying hybrid systems. These utilize hot-rolled structural steel I-beams or structural channel profiles for the front column impact zones, while transitioning to high-tensile cold-formed roll-formed steel for internal upper levels, optimizing structural strength against capital expenditure.
With stringent European Union carbon border adjustment mechanisms (CBAM) and corporate ESG initiatives, international buyers favor racking exporters using electric arc furnace (EAF) steel and zero-VOC waterborne/powder finishes. Modern manufacturing facilities in China leverage automated closed-loop powder coating lines that recycle up to 98% of oversprayed powder, delivering lower embedded carbon profiles per pallet position.
The manufacturing landscape for heavy-duty lane storage equipment in China has undergone a technological paradigm shift. Below are the key engineering breakthroughs embedded into our current production lines:
Our engineering design software generates instant Building Information Modeling (BIM) files, enabling seamless clash-detection with warehouse HVAC, fire sprinkler mains, and automated conveyor systems.
Optional smart sensor nodes embedded within critical upright columns communicate via IoT gateways to monitor structural strain, seismic displacements, and accidental forklift collisions in real time.
Multi-station continuous roll-forming machines produce complex continuous upright punch profiles with zero micro-cracking, preserving high yield strength throughout structural bends.
Get authoritative answers regarding structural compliance, international shipping, customized layout design, and installation support.
