Engineered for high-density storage, structural integrity, and maximum forklift impact resistance in warehouse operations.
In modern industrial logistics, modern warehouse operations no longer treat static pallet racking as simple steel shelving. Heavy-duty static pallet rack systems function as critical structural load-bearing assets. Every beam connector, frame brace, and column baseplate must handle dynamic forklift impacts, vertical compression loads, and seismic shear forces. As a premier CE Certified Static Pallet Racking Supplier & Exporter, FlexBeam Warehouse Equipment Co., Ltd. builds engineered pallet storage infrastructure that fully complies with European Standard EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and the Construction Products Regulation (CPR 305/2011).
Information Gain Key Takeaway: Non-certified racking often suffers from uncalibrated cold-formed steel thickness tolerances and inadequate weld seam penetration, increasing column buckle risk under maximum load. CE marking under EN 1090-1 and EN 15512 enforces strict material traceability (EN 10204 3.1 certification), finite element stress analysis (FEA), and strict structural safety margins (safety factors of 1.55 on steel yield strength).

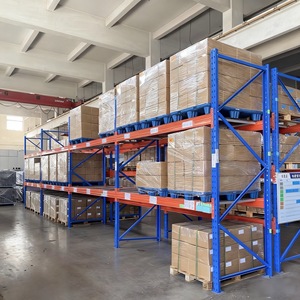

Static selective pallet racking relies on semi-rigid beam-to-column connections and friction-anchored baseplates. Unlike dynamic storage systems (like gravity flow or radio shuttle systems), static racking maintains a fixed physical footprint where load stability depends entirely on section modulus, material yield strength, and connection stiffness ($K_i$).
Our engineered systems utilize cold-rolled high-tensile steel grades such as S355JR / Q355B and S235JR / Q235B. By utilizing closed tubular profiles (featured in our SK2000 boltless racking series) and heavy C-channel structural profiles (featured in our SK3000 series), we boost torsional rigidity by up to 250% compared to conventional open slotted roll-formed columns.
Choosing between cold-formed boltless racking and hot-rolled structural channel racking depends directly on your operational throughput, forklift type, storage environment, and budget parameters.
| Engineering Parameter | Cold-Rolled Boltless Tubular (SK2000 Series) | Hot-Rolled Structural Steel (SK3000 Series) | Standard Open-Back Slotted Racking |
|---|---|---|---|
| Primary Steel Grade | High-Tensile S355JR / Q355B Structural Steel | Hot-Rolled Structural Channels (S235JR / S355JR) | Standard Q235B Cold-Rolled Strip Steel |
| Upright Profile Geometry | Closed-Seam Continuous Tubular Section | Heavy-Duty Hot-Rolled C-Channel Sections | Open-C Channel with Slotted Punching |
| Torsional Resistance | 200% Higher Torsional Rigidity vs. Open Channels | Extreme Impact Resistance; Solid Steel Web | Standard Resistance; Vulnerable to Twist Impact |
| Beam Connection Type | Boltless Multi-Claw Lock with Safety Pins | Bolted Structural Flange Connections (Grade 8.8) | Standard Teardrop / Hook Connector |
| Max Frame Capacity | Up to 22,000 kg (48,400 lbs) per Bay | Up to 35,000 kg (77,000 lbs) per Bay | Up to 14,000 kg (30,800 lbs) per Bay |
| Deflection Ratio Limit | Strict $L/200$ Structural Limit | High Rigidity $L/250$ Operational Limit | Standard $L/180$ to $L/200$ Limit |
| Corrosion Protection | TGIC-Free Powder Coating (60–90 µm) or Pre-Galv | Hot-Dip Galvanized (HDG per EN ISO 1461) | Standard Spray Paint or Light Powder Coating |
| Ideal Operating Environment | Fulfillment Centers, Retail Distribution, High-Traffic DCs | Freezers, Heavy Manufacturing, Outdoor Racking | Low-Throughput Storage, Budget Warehouses |
As a trusted manufacturer and exporter, FlexBeam Warehouse Equipment Co., Ltd. combines advanced manufacturing technology with rigorous engineering expertise.

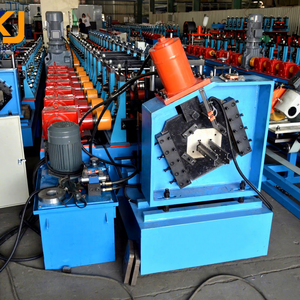

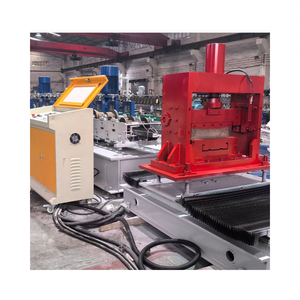

Our facility houses 18 state-of-the-art, PLC-controlled continuous cold roll-forming production lines. This machinery ensures tight profile tolerances ($\pm 0.5\text{ mm}$), uniform punch pitch spacing, and zero stress cracking along beam flanges.
Every structural upright frame and beam assembly leaves our factory backed by ISO 9001 quality management, ISO 14001 environmental compliance, and European CE certification under EN 1090-1 execution class EXC2.
We do not sell one-size-fits-all products. Our in-house structural engineering group performs 3D Finite Element Analysis (FEA) to simulate localized buckling, seismic accelerations, and live weight stress distributions prior to raw material cutting.
International freight costs require optimal shipping density. Our dedicated export packaging team utilizes custom steel-strapped nesting bundles, plastic film moisture wrapping, and wooden skid cushions to prevent damage during long ocean transit.
To drastically reduce long-term operational maintenance costs, our static racking integrated options feature heavy-gauge leg protectors, column cores, and wrap-around rub rails engineered to absorb forklift collisions.
From initial CAD layout drafting and structural calculation dossiers to customs clearance documentation and assembly manuals, FlexBeam provides complete end-to-end B2B project support for global buyers.
As industrial supply chains adapt to automated logistics, e-commerce fulfillment spikes, and ESG corporate initiatives, procurement leaders must look beyond basic initial purchasing costs. Modern static racking installations now serve as the structural backbone for hybrid warehouse automation.
Supply chain operations are increasingly adopting Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) alongside standard forklifts. Modern static pallet racks require elevated bottom beam levels, tight floor anchor tolerances, and integrated optical reflector mounts.
Procurement teams now mandate racking specifications with precise frame squareness tolerances (EN 15620 Class 400) to ensure zero interference between robotic lifts and pallet bottom clearances.
Savvy global procurement officers no longer pick racking purely on the lowest price per pallet position. Uncertified low-cost racks frequently deform under light fork strikes, triggering expensive column replacements and operational aisle shutdowns.
By investing in CE-certified, tubular impact-resistant upright frames (such as FlexBeam’s SK2000 series), logistics operators reduce lifecycle maintenance overhead by up to 60% over a 10-year operational span.
Environmental governance policies demand lower embodied carbon in steel construction. FlexBeam leads the industry by utilizing energy-efficient electric arc furnace (EAF) steel coils and eco-friendly, zero-VOC electrostatic powder coatings.
All powder coat overspray in our production process is recovered and recycled via automated multi-cyclone recovery systems, ensuring complete compliance with international environmental standards.
Static racking is joining the Internet of Things (IoT). Modern enterprise facilities are installing load-cell sensors, structural strain gauges, and QR-coded maintenance tags directly onto main upright columns.
FlexBeam provides laser-engraved QR component serial numbering across all export racking systems, enabling warehouse managers to instantly scan and access engineering load capacity plaques and replacement part ordering portals.
The global industrial storage rack market is undergoing a structural evolution driven by high land acquisition costs, warehouse height expansion, and severe labor shortages in material handling.
With real estate costs at record highs, newly built distribution centers are extending storage height from conventional 6-meter bays up to 12-meter and 15-meter clear ceiling heights. This trend demands higher column section modulus ($Z_x$) and stiffer heavy-duty floor baseplates.

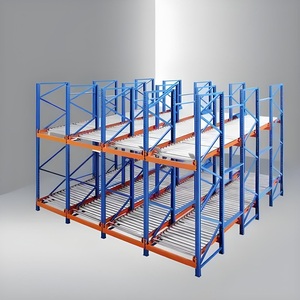

Modern distribution centers are moving away from purely single-function layouts. High-velocity SKUs are stored on lower level carton flow or pallet flow channels, while static upper beam tiers store bulk reserve pallets, maximizing order picking efficiency.
Pharmaceutical and frozen food logistics require static racking that survives sub-zero temperatures (down to $-30^\circ\text{C}$) without cold-temperature embrittlement. FlexBeam structural hot-rolled channel racking engineered with low-temp notch-tough steel prevents sudden brittle fractures in freezers.
Get expert engineering answers to common technical, logistics, and compliance questions regarding static pallet rack sourcing.
CE certification under EN 15512 and EN 1090-1 guarantees that the pallet racking has undergone rigorous physical testing, structural finite element analysis (FEA), and material quality verification. Certified racking adheres to strict structural safety factors (typically 1.55 on steel yield capacity), precise beam deflection limits ($L/200$), and raw material traceability (EN 10204 3.1 mill test certificates). Non-certified racking often uses uncalibrated steel, inconsistent weld penetration, and unverified load ratings, exposing operators to structural collapse risks under rated capacity.
To produce an exact structural engineering proposal, our engineering team requires: (1) Pallet dimensions (Length x Width x Height including cargo), (2) Maximum and average load weight per pallet, (3) Building clear ceiling height and obstacle locations (sprinklers, lighting, trusses), (4) Forklift specifications (type, aisle turning radius, and maximum lift height), (5) Floor concrete slab thickness and compressive strength, and (6) Local seismic acceleration zone details if applicable.
All FlexBeam steel rack components undergo a multi-stage surface preparation process, including automated shot blasting (SA 2.5 cleanliness rating) to remove mill scale and oil residues, followed by electrostatically applied epoxy-polyester powder coating (60–90 micron thickness) cured at $200^\circ\text{C}$. For harsh environments or cold storage freezers, we offer hot-dip galvanizing per EN ISO 1461, delivering over 500 hours of salt spray corrosion resistance (ASTM B117 standard).
Yes. While CE compliance (EN 15512) is our baseline standard for European and international export projects, our engineering department regularly customizes structural designs to conform with US Rack Manufacturers Institute (RMI ANSI MH16.1), Australian Standard AS 4084-2012, or local building code regulations specified by your local Authority Having Jurisdiction (AHJ).
We pack rack systems for container transport by bundling structural upright frames and load beams into custom heavy-gauge steel-strapped units with protective corner guards. High-impact areas are wrapped in protective polyethylene bubble film and moisture barrier sheets. All small components (baseplates, row spacers, safety pins, anchors) are packed in reinforced wooden export crates clearly labeled with part numbers matching your engineering drawings.
Standard engineering approval and CAD layout finalization take 3 to 5 business days. Once drawings are approved and raw steel is allocated, factory fabrication typically requires 20 to 30 calendar days for standard 40ft High Cube container volumes. Expedited manufacturing schedules are available for time-sensitive warehouse installation projects.
Contact FlexBeam’s structural engineering team today for a complimentary CAD floor plan layout, load capacity calculation dossier, and direct factory export quotation.
